Specialized Application | CodeRevo-X Industrial Small Character Inkjet Printer with Built-in Slide R

Product Model｜ CodeRevo-X

Product Introduction

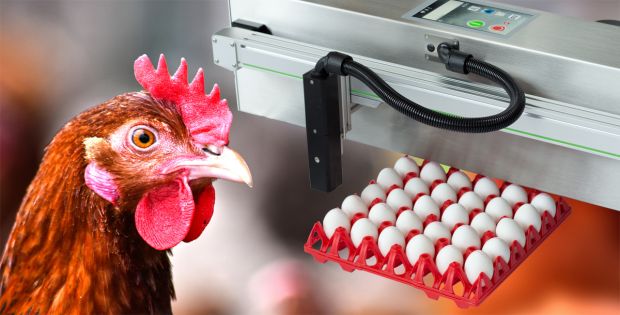

Featuring an innovative guide rail design, the CodeRevo-X precisely addresses the needs of intermittent production lines, making it ideal for industrial processes requiring efficient control.

- +

Add inquiry form Sold out

Product Description

This printer integrates a state-of-the-art linear guide system specifically designed for intermittent production lines. With a guide rail movement of up to 500 mm, it adapts to various production demands. It supports printing of graphics and text in sizes ranging from 5 to 24 dots, with a print height of 5 to 8 mm. The device features a user-friendly interface, equipped with a 7-inch color touchscreen, and comes with built-in USB and Ethernet connections for seamless data transmission and real-time production monitoring. With an IP54 protection rating, it is well-suited for industrial environments. The smart ink management system ensures stable printing while minimizing solvent emissions.

Product Specification

Hardware Specifications

Body Material: Stainless Steel / Anodized Aluminum
Body Dimensions: 820 x 379 x 240 mm
Protection Rating: IP54
Print Head Material: Stainless Steel / Anodized Aluminum
Guide Rail: 500 mm travel distance (custom lengths available upon request) <1 second/travel
Operating Temperature: 5-45°C
Operating Humidity: 10-90% non-condensing
Power Supply: 88-264V〜50/60 Hz
Interfaces: Ethernet, USB
Printing Mode: 5 to 24 dots graphics
Print Height: 5 – 8 mm
Memory: > 300 MB
Connectors: On-the-go printing with 3 signal outputs, 2 inputs, and 2 outputs (all 24V)
Display: Color 7-inch touchscreen

Software Specifications

User Interface: Intuitive graphic-based user interface
Operating System: Windows CE
Data Transfer: Easy data transfer via USB flash drive
Standard Interfaces: USB, Ethernet
Production Statistics: Comprehensive production statistics
Ink Management: Intelligent ink and solvent management
Printing Applications: Up to 24 dots/text/graphics

Other Features

Quick and easy installation
Ideal for intermittent printing on production lines or as a semi-automated manual workstation
